Note that many items are now between 30 and 70 years old.

Some tarnishing of contacts or storage marks may have occurred.  I can advise on the detailed condition of specific items on request



Cat No.

Click Pics
for larger View

Description

Condition

Price

GBP
 Fischer & Lemo Connectors

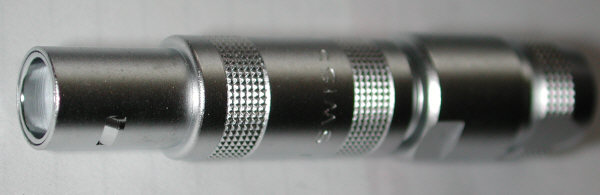

CON6100x . Fischer and LEMO Connectors
A few various types available - some listed below.
See HERE for the catalogue on the Fischer site.		 New/Used from 2.00
CON6101

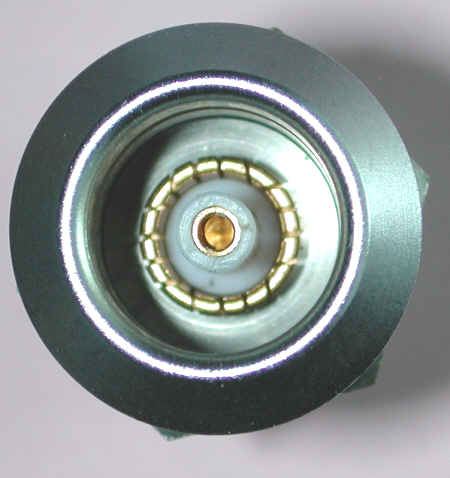

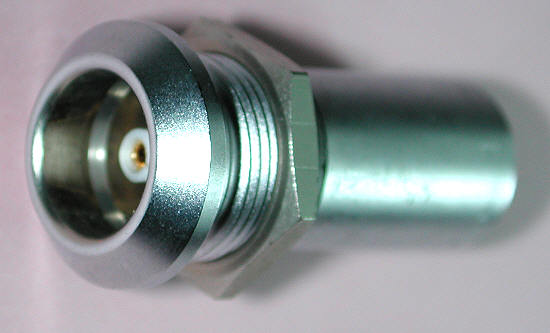

LEMO EHT 1w Panel Lead through Socket.
Double-ended accepting free plug inside and outside equipment.
Gold plated contacts.  16mm diameter, 20mm diameter bezel, 40mm long.		 New Old Stock 25.50

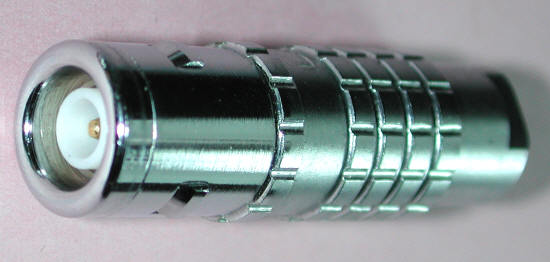

CON6102 LEMO EHT 1w Free Plug.
 Mates with CON6101. 13mm diameter, 43 mm long.		 New Old Stock 20.50

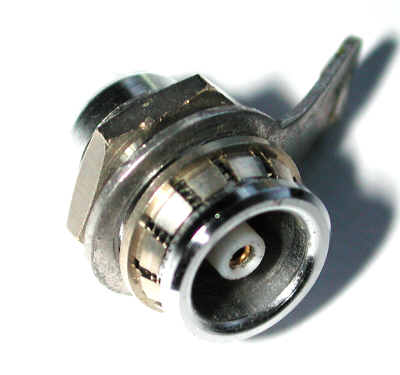

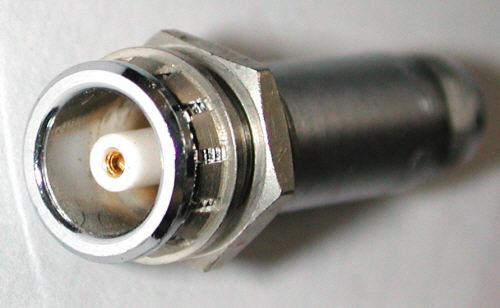

CON6111 LEMO 1w Fixed socket.  With screened cable entry.  35mm x 10mm New Old Stock 5.50
CON6111a LEMO 1w Fixed socket.  18 x 10mm.   Ex equipment with solder tag. Used
New		 2.00
4.50
CON6112   LEMO 1w Free Plug. With screened cable entry.  35mm x 9mm New Old Stock 7.70

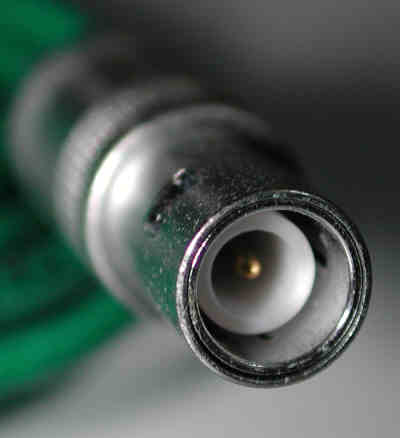

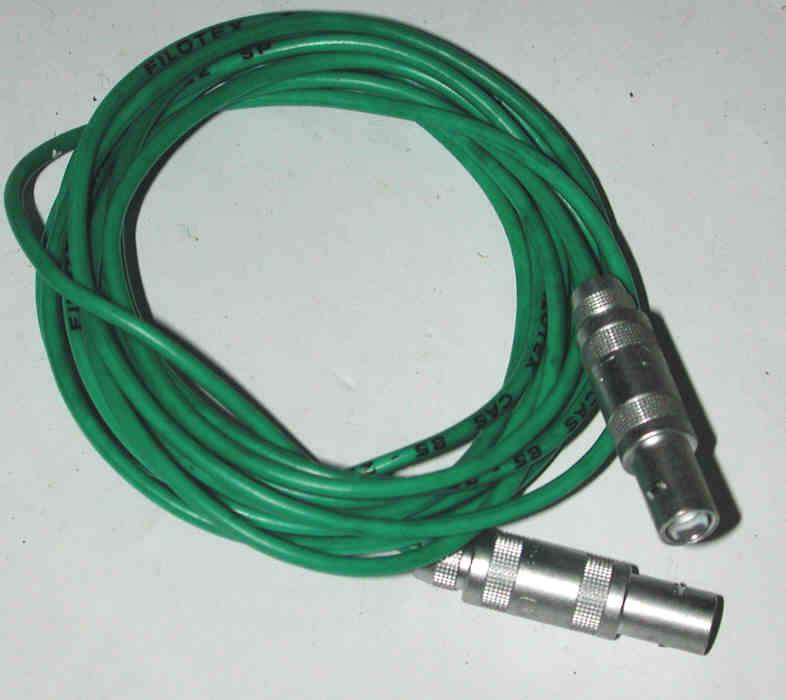

CON6113 Cable with LEMO 1w Free Plug on each end.
Miniature Screened cable Approximately 2mm diameter.
2m long approximately. 		Ex Lab 7.50

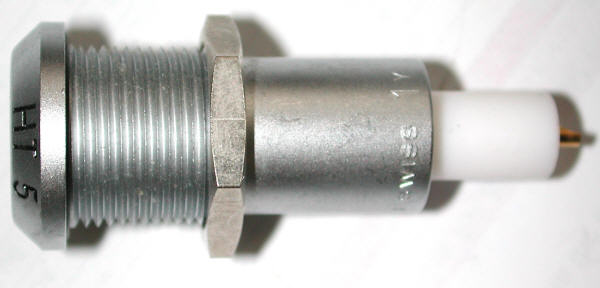

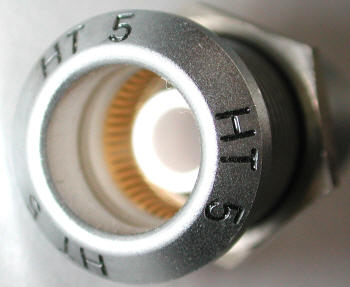

CON6115   LEMO HT Fixed Socket.  Engraved HT5. New Old Stock 7.00
CON6116 LEMO 2w Fixed socket.  One male and one female contact.
8.99mm diameter, 18mm long, 10mm bezel		 New Old Stock 6.00
CON6116a LEMO 2w Fixed socket.  One male and one female contact with earth lug
8.99mm diameter, 18mm long, 10mm bezel		 Used 2.90

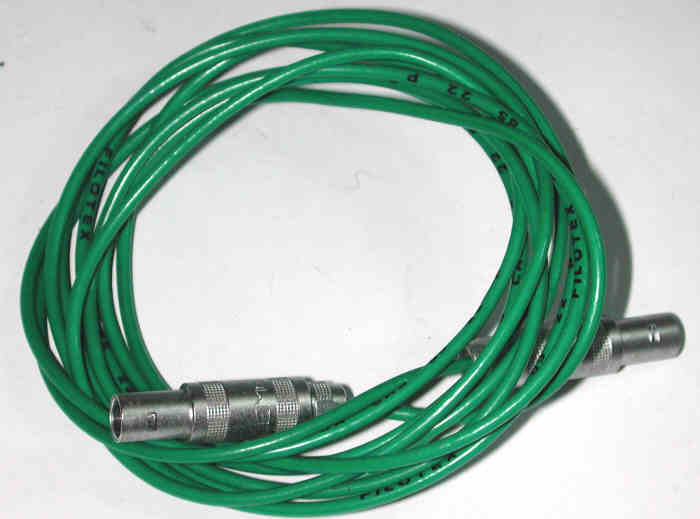

CON6118 Cable with LEMO 2w Free Plug on each end.
Miniature Screened cable Approximately 2mm diameter.
2m long approximately.  Mates with CON6116		 Ex Lab 7.50
CON6119 . Cable with LEMO 2w Free Plug on one end.
Miniature single high quality black screened cable.
2.2mm diameter.  Mostly about 10m long.  Mates with CON6116.  		Ex Lab 5.50 ea

6 for 22.00

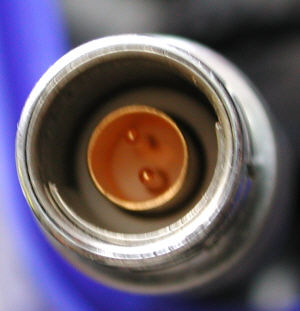

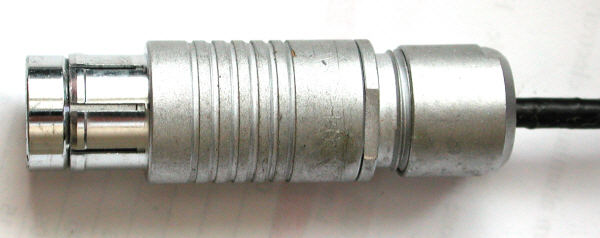

CON6217   Fischer Free Plug 2w double screened.
Ex equip with short length cable attached.		 Ex equip. 4.00
CON6218 . Cable with Fischer Free Plug 2w.      Various long lengths. Ex Lab .
CON6219 . Fischer 3w Free plug.  SE103 A052/6.2 .  New Old Stock 9.00
CON6221 . Fischer 5w Free socket.  SE104 Z053/7.7 .  New Old Stock 9.00
CON6225 . Fischer Flexible Black Cable sleeves. 103.00.861 (small) and 104.00.861 (larger) New Old Stock 2.00
Other Circular Types
BULGIN MULTIWAY

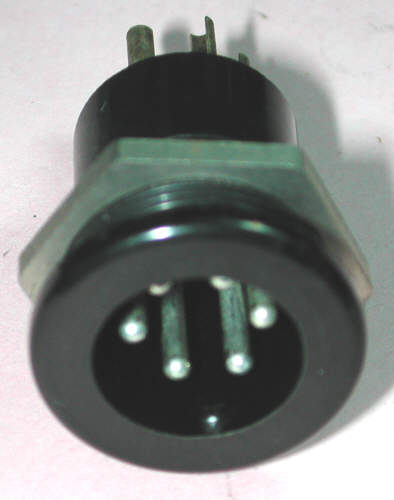

CON6370 Bulgin P427.  6 pole fixed male receptacle. 19mm diameter hole, 34mm long Unused 5.50

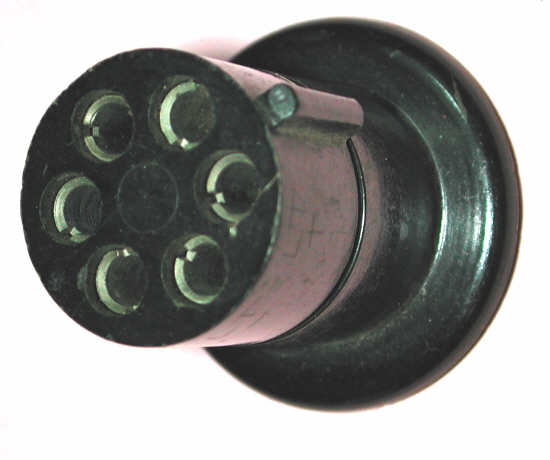

CON6375 Bulgin SA601.  6 pole free female plug. AP W5218 or equivalent.
28mm diameter of insert body, 44mm long.  These may have slight damage and/or have had wires soldered to screw sockets.		 Used 4.50 to 8.00
Bulgin 3 pole Connectors
See Mains Section for similar 3-way connectors
Valve Bases and Plugs,  IO B7G and Connectors - See Valve Page
CON6380 . Plessey "Sub-Micro" Mk 14  7-way Fixed plug size 2-7.  Ref 508/1/12540.
13mm square flange, with 4 holes on 10mm centres. 16mm overall depth.
Supplied with 8 loose gold plated sockets for solder or crimp use and push fit into body moulding.  With instruction sheet.		 Sealed bags. New old stock 0.60
CON6381 Plessey Mk 14 3 way Free Socket size 1.  Ref 508/1/12546.  9mm diameter, 15mm long overall.  Supplied with 4 loose gold plated sockets for solder or crimp use and push fit into body moulding.  With instruction sheet. Sealed bags. New old stock 0.50

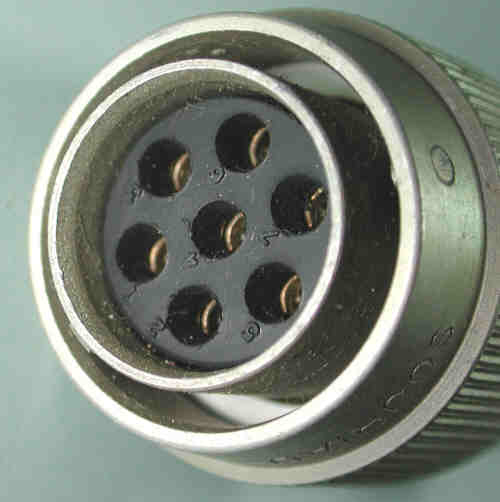

CON4375 Souriau  7 way free socket. 8-40-2
27mm diameter 63mm long. Aluminium body, plastics shroud.
 Used 3.60

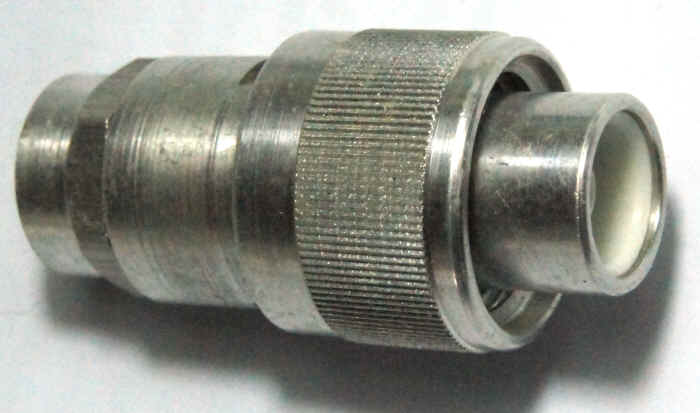

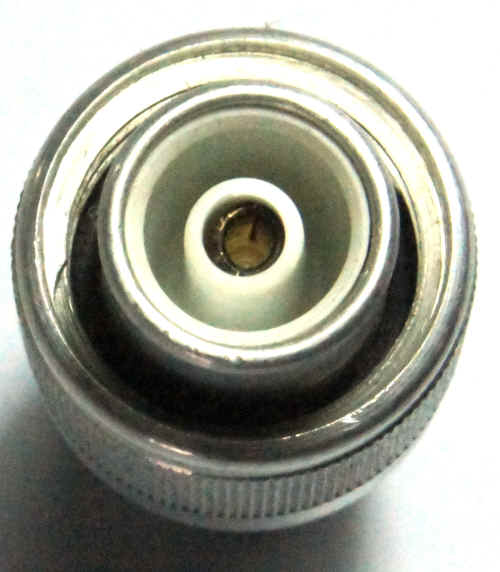

PET Connectors  - ( Precision Electronic Terminations) - PTFE insulation - often used as HV or DVM input

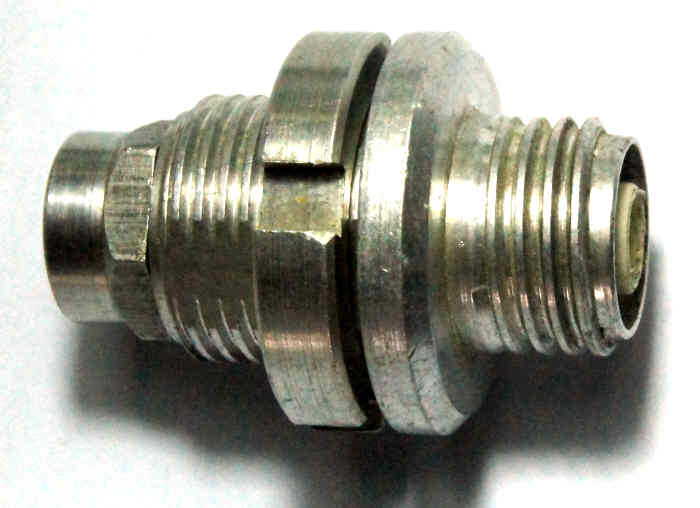

CON6391 PET Fixed 1 pole.   ?Used 5.00
CON6392 PET Free 1 way . New old stock 7.50

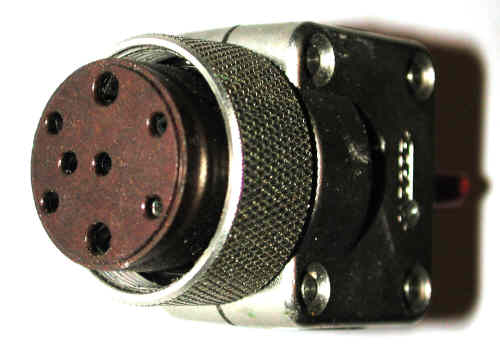

CON6473

Jaeger 8w free socket 0429 550 06 - "Socket Insert Plug".    Ex equipment wired with short cut-off cable. Solder connections.
Two large sockets and six smaller 15A and 35A rated.   Outer ring approx 27mm diameter. The cable entry has 3 possible positions - sides and top.  On most there is a small 500 ohm potentiometer mounted inside on the hood which can be unscrewed. This type was used on various professional and broadcast equipments.



Used 1.60

Belling Lee "Screenector" plugs and Sockets. CONN6581 to CON6592
Low weight screened connectors for low and medium frequencies. The housings are polarised and accommodate easily changed plug and socket assemblies.  A spring-loaded locking ring is incorporated to prevent accidental disengagement but screen continuity is maintained in static environments even with the ring undone.   Joint Services numbers are applied to some of the range.

The inserts in in all the range can be interchanged to change from plug to socket in both the fixed and free types and between the 1,2 and 3 pole versions. The body dimensions are the same for the 1, 2 and 3 pole versions.

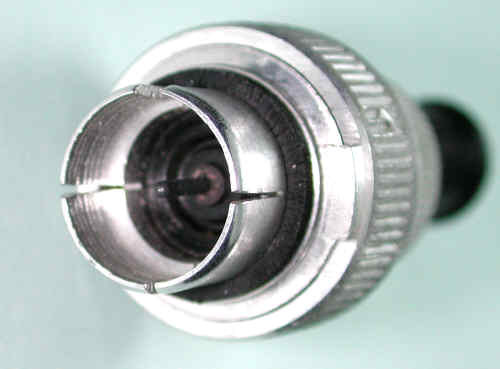

CON6581 1 way Free Plug. L788/FP 5935-99-943-8177 New Old Stock 3.60

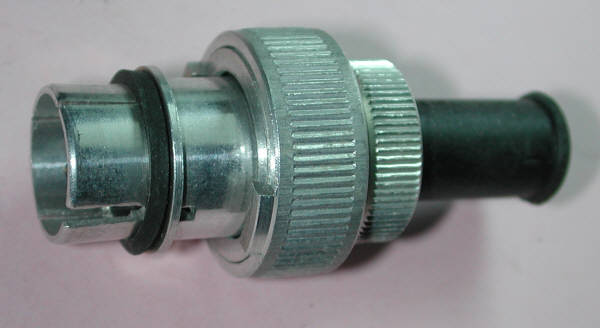

CON6582 1 way Free Socket. L788/FS 5935-99-927-8082 New Old Stock 3.60

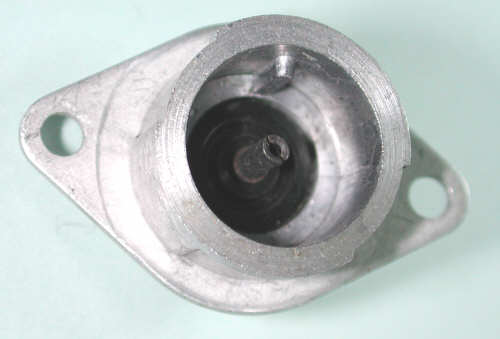

CON6584 1 way Fixed Socket. L788/CS 5952-99-943-8807
 New Old Stock 2.60
CON6585 2 way Free Plug.  L789/FP 5935-99-972-8052
23mm max diameter, 32mm long plus sleeve.		 New Old Stock 3.60
CON6586  2 way Free Socket.  L789/FS
      19mm max diameter, 32mm long plus sleeve.		 New Old Stock 3.60
CON6588 . 2 way Fixed Socket. L789/CS 5935-99-972-8053
The mounting flange is 35 x 22.1mm. The holes are on 28.3mm centres. The diameter of the body behind panel is 18.9mm.		 New Old Stock 2.60

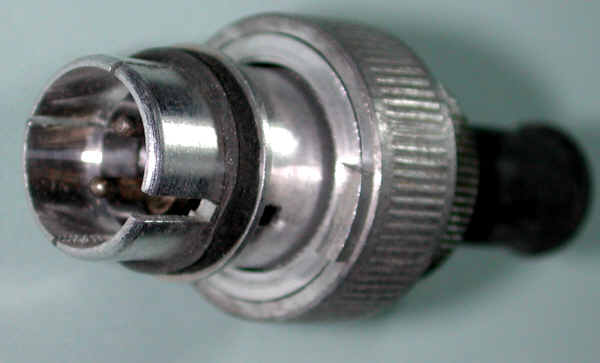

CON6589 3 way Free Plug.  L790/FP 5935-99-911-1090 New Old Stock 3.60

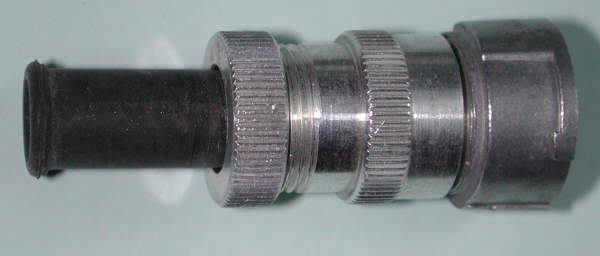

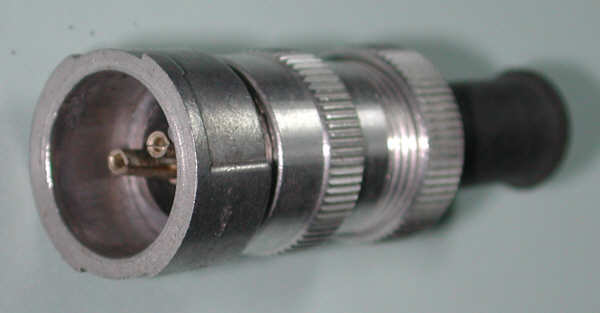

CON6590 3 way Free Socket.  L790/FS New Old Stock 3.60

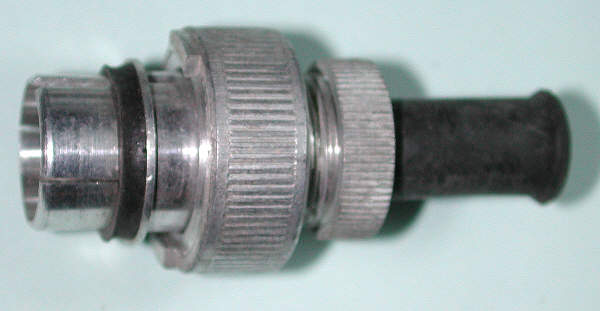

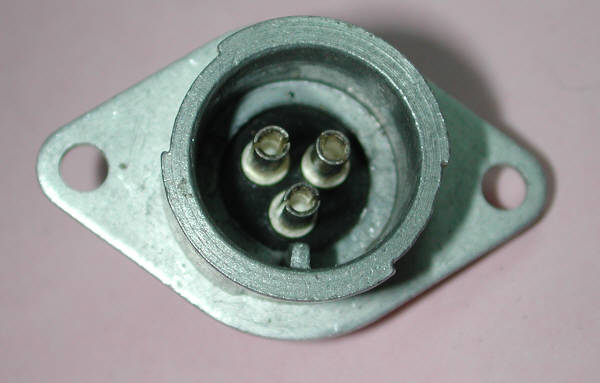

CON6592 3 way Fixed Socket.  L790/CS 5935-99-911-1092
 New Old Stock 2.60

CON6615 Hirose- HRS - 3 pole free socket - line socket, bayonet style 147040
17mm diameter, 43mm long overall		 New Old Stock 5.50
CON6618 . Hirose- HRS - 10 pole free socket . 294834  RS 470-831
Unopened packet with sleeve		 New Old Stock 5.50

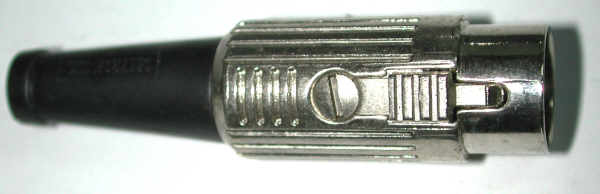

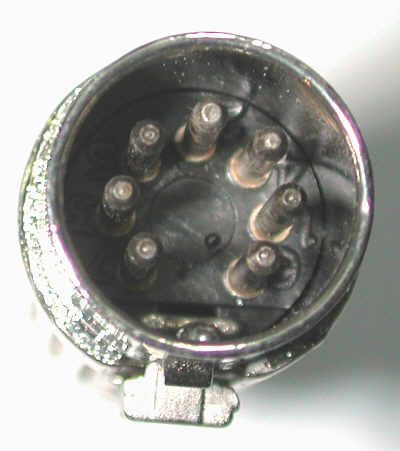

CON6685     7-way Free DIN plug.  Locking style metal body.    Unused old stock 0.30
